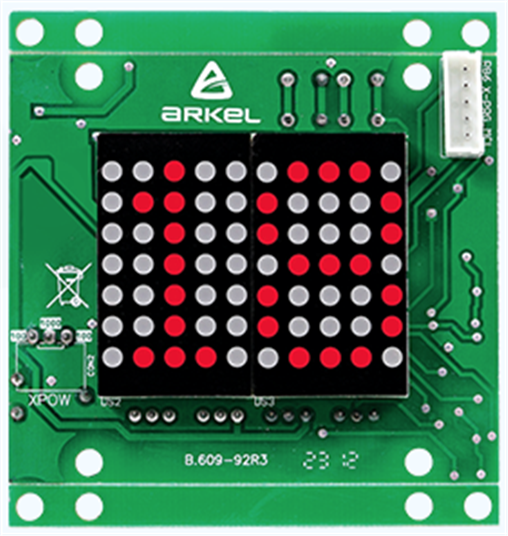

BC-D2X LANDING CALL & INDICATOR (RED)
2X Dotmatrix
- Indicators
- Control of button sound
- Programmable / updateable via CANbus
- Sound can be adjusted for the gong using the trimpot labeled "Volume" on the cassette cards.
General Features
- Dimensions (mm) -> 73×77×17 (73x64x17)
- Weight (gr) -> 40
- Operating Voltage -> 24VDC (18-30VDC) (from the X-CB1 and X-CB2 sockets)
- Call Button Entry -> 2 Units
- Visible Area (mm) Length × Width -> 46x30 (2 digits 30 mm display)
- Operating Temperature -> 0-60˚C
- Gong Output (X-SPE) -> 0,5 W
- Programmable input-output socket Gong output -> 2 Units
